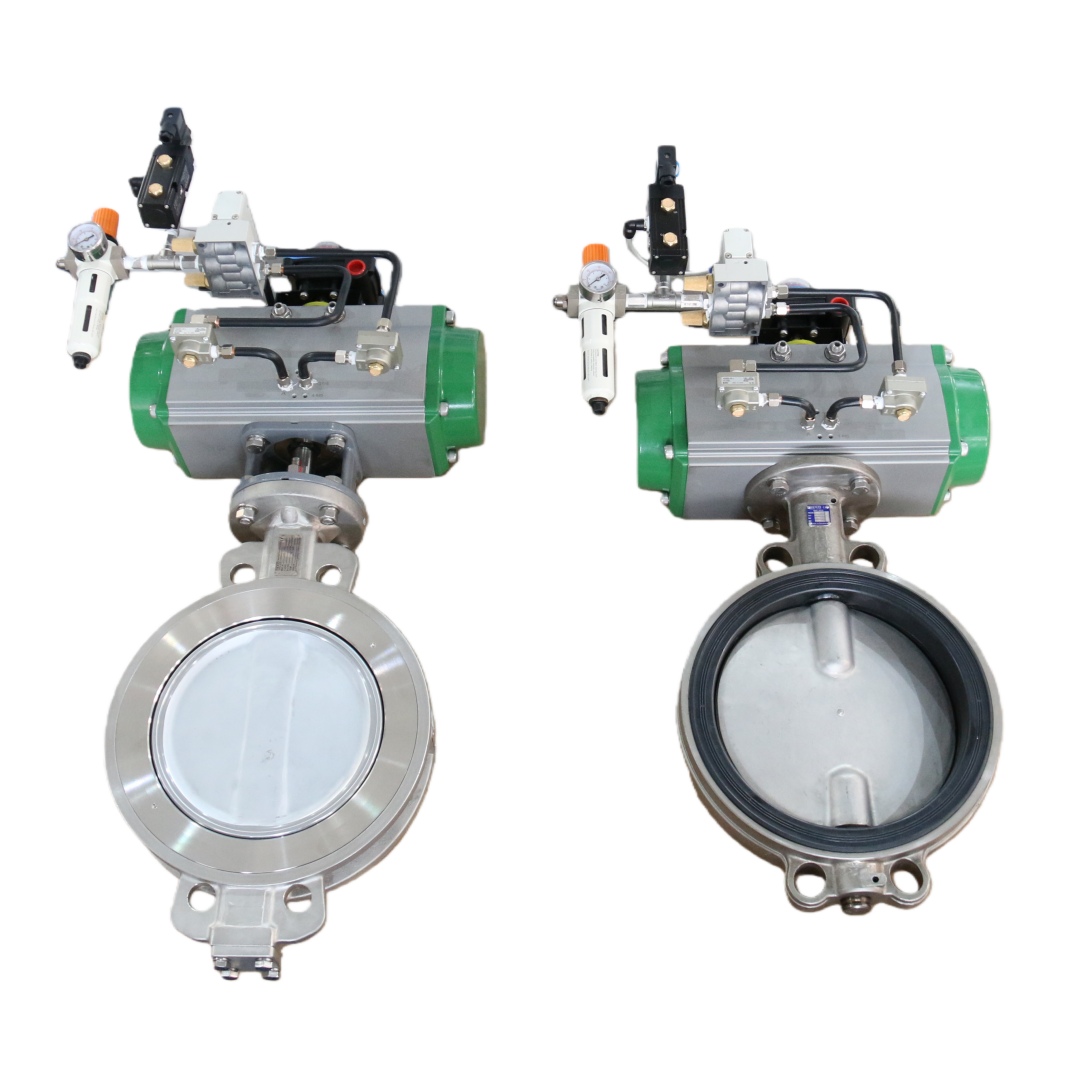

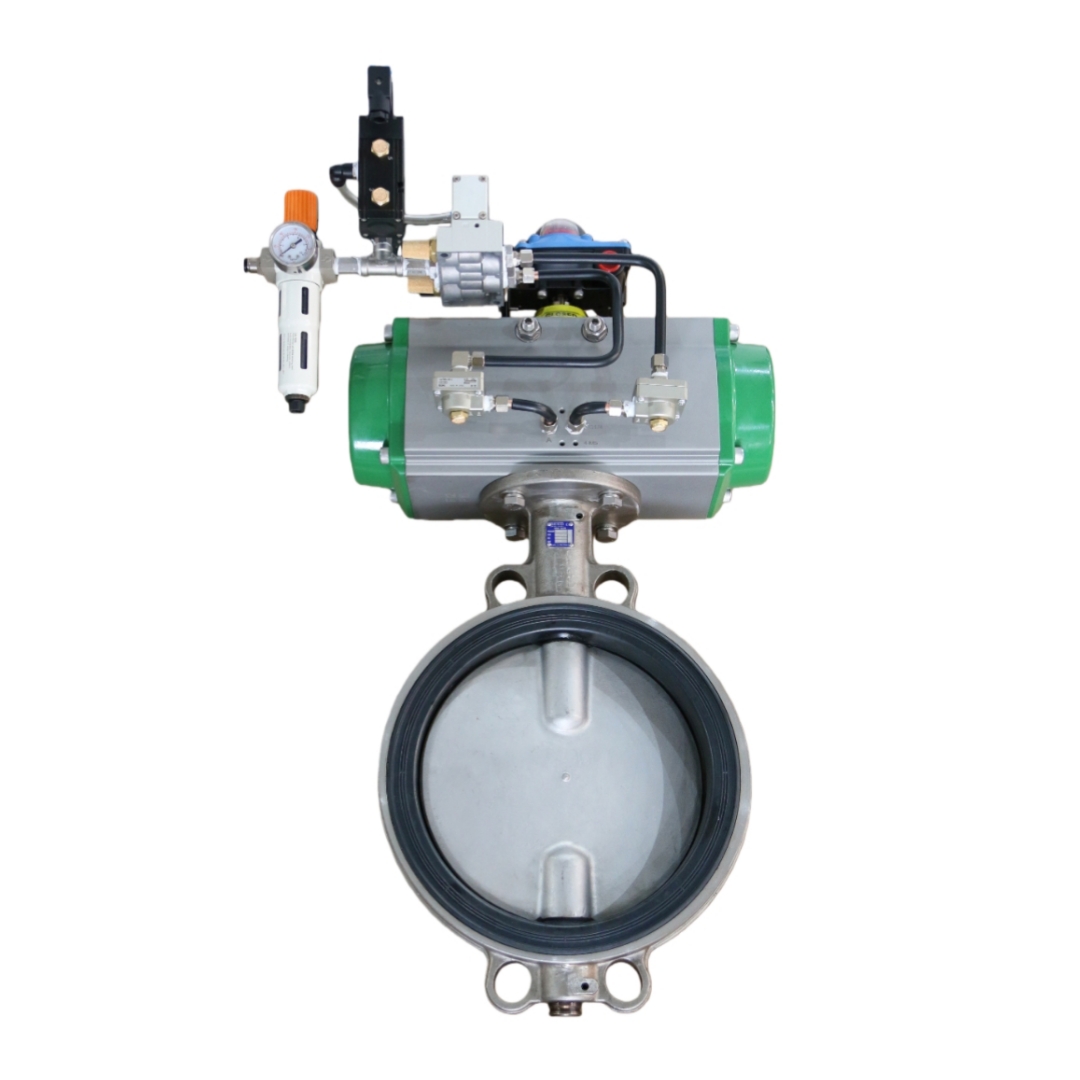

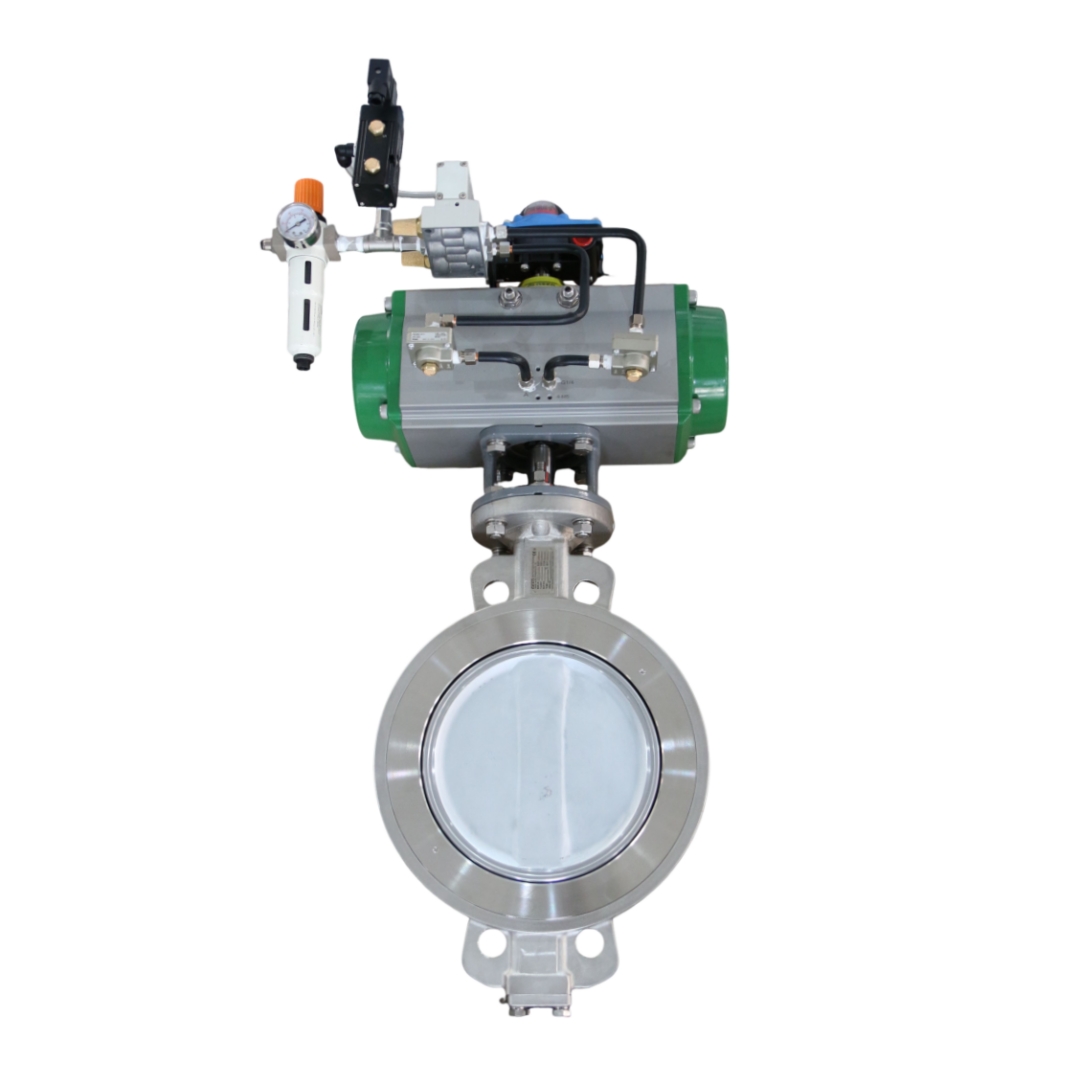

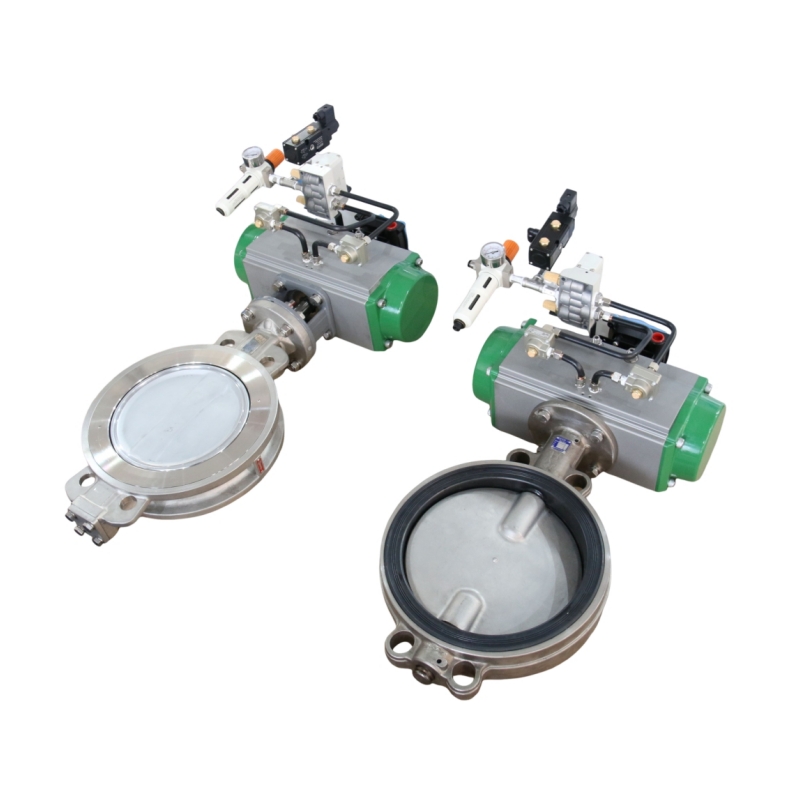

Name: High-Frequency 1S Pneumatic Butterfly Valve Fast Acting Shut-off Valve
Availability: InStock

GEKO High-Speed Response Pneumatic Butterfly Valve

Size Range22:50:42

2"~160"（DN50~DN600）

Body Materials

Carbon steel (WCB, A105), stainless steel (CF8/CF8M, CF3/CF3M), alloy steel (F22, WC6, WC9), duplex/super duplex (2205, 2507), nickel-based alloys (Inconel, Hastelloy, Monel), or special materials (Titanium, Zirconium, Tantalum).

Temperature Range

-320°F to 842°F（-196°C to 450°C）

Stem Materials

17-4PH, 410 Stainless Steel, XM-19 (Nitronic 50),stainless steel (410, 420, 431, 17-4PH, 316) or nickel-based alloys, optionally hardened or coated for extra strength and wear resistance

Maximum Allowable Operating Pressure

ASME 150LB, 300LB, 600LB 900LB/ EN 1092 PN 10, 16, 25, 40, 63, 100, 150

Seat Materials

PTFE, RPTFE, Viton, EPDM

Shut off Rating

Zero Leakage

Disc Materials

Stainless steel, duplex stainless steel, or nickel-based alloys, with optional hard-facing (Stellite, WC) or HVOF coating for wear and corrosion resistance.

Design Standard

API 609, ASME B16.34, ASME VIII, API 600

Flange Drilling

ASME B16.5, ASME B16.47, EN 1092, ISO 7005

End Connections

Wafer, Lug, Double Flanged

Testing standard

ISO 5208, EN12266-1, API 6D, API 598, BS 6755

Ports

Full bore

Connect Platform

ISO5211, Bracket

Face To Face

AAPI 609, ASME B16.10, ISO 5752, EN 558

Applications

Oil and gas, steam, power generation, refining, chemical processing

GEKO Fast Acting Shut-off Butterfly Valve

The GEKO High-Frequency 1S Pneumatic Butterfly Valve is manufactured

in accordance with thelatest MSS SP-67, API 609 (USA), and ISO 7005

standards. All valves are fully tested according to API 598 standards, including

static pressure tests, gas tightness tests, and overall performance tests,

ensuring zero leakage and high quality.

Valve size range: DN40 ~ DN600

Pressure rating: PN 1.0 ~ 1.6 MPa

Incorporate both DIN and ASME design standards

Actuator connection dimensions can be customized according to ISO 5211,

ANSI standards, or user requirements.

Applicable flange standards:

ISO 9005–1992 pipeline flange system, PN1.0 ~ PN1.6

ASME / ANSI B16.5-1996 pipeline flange system, CL125, CL150

JIS B2211~2213-1996 pipeline flange system, 5K, 10K, 16K

GB/T 9113-2000 pipeline flange system, PN1.0 ~ PN1.6

The Feature of GEKO High-Speed Response Pneumatic Valve

Fast Response Time: Achieves quick opening and closing with a 1-second action time, ideal for high-frequency operations.

Pneumatic Actuation: Powered by a pneumatic actuator for efficient, automated flow control.

Durable Construction: Built with high-quality materials for long-lasting performance and reliability in demanding environments.

Compact Design: Space-saving design, easy to install in tight spaces and piping systems.

Wide Application Range: Suitable for use in industries such as automation, HVAC, water treatment, chemical processing, and more.

Reliable Flow Control: Ensures precise and efficient fluid control with minimal maintenance.

Food & Beverage Industry
Used for discharging powders, grains, sugar, coffee beans, and liquid/paste materials from tanks or hoppers. Ensures hygienic operation and minimal residue.

Operating Conditions: Sanitary design, CIP/SIP compatible, smooth internal surfaces, precise discharge control, prevents contamination and material waste.
Pharmaceutical & Biotech
Controls bottom discharge of medicinal powders, buffers, and granules from process tanks and hoppers.

Operating Conditions: GMP/ISO compliant, no dead corners, precise micro-volume control, hygienic and easy to clean.
Chemical & Coating Industry
Handles resins, chemical powders, and granules safely from storage or process vessels.

Operating Conditions: Corrosion-resistant materials, high temperature and pressure tolerance, smooth Y-type structure reduces clogging and ensures continuous flow.
Plastic & Polymer Processing
Discharges plastic granules, additives, and powder materials from silos and hoppers.

Operating Conditions: Wear-resistant design, prevents bridging, supports manual or automated actuation, ensures accurate material flow.
Mining & Cement Industry
Used for discharging cement, mineral powders, sand, or slurry from tanks and silos.

Operating Conditions: High wear and abrasion resistance, smooth Y-type structure prevents clogging, allows fast tank emptying and high throughput.
Feed & Agricultural Processing
Discharges grains, feed pellets, and powdered materials from storage hoppers and bins.

Operating Conditions: Smooth internal surfaces, precise discharge rate, maintains particle integrity, quick emptying and easy cleaning for hygiene compliance.
