Name: Hydrogen Service Instrument Needle Valve
Availability: InStock

Needle valve for hydrogen purification unit and hydrogen electrolyzer

Size Range

NPS 1/16" – 2"

Body Materials

Stainless Steel 316/F316L, Alloy 20, Monel 400

Temperature Range

-65°F to 1200°F (-54°C to 650°C)

Stem Materials

Stainless Steel 316/316L, Alloy 20

Maximum Allowable Operating Pressure

10000 psi WOG / 690 bar

Seat Materials

PTFE, PCTFE, PEEK, Stainless Steel, Alloy 20

Shutoff Rating

Class VI / Zero Leakage

Disc Materials

Stainless Steel 316, Alloy 20, Monel 400

Body Style

Straight Pattern / Inline

Design Standard

ASME B31.1 / B31.3, ISO 9001 Compliant

End Connections

Female Threaded / NPT, ISO 8434-1 Compression Fittings

Testing Standard

API 598 / ISO 5208 / Shell Test Per Customer Requirement

Ports

Standard Single Port / Multi-Port Options Available

Connect Platform

NAMUR Standard Mounting For Actuators

Face To Face

As per Manufacturer Standard / ASME B16.10

Applications

Instrumentation, Petrochemical, Gas & Liquid Control Systems

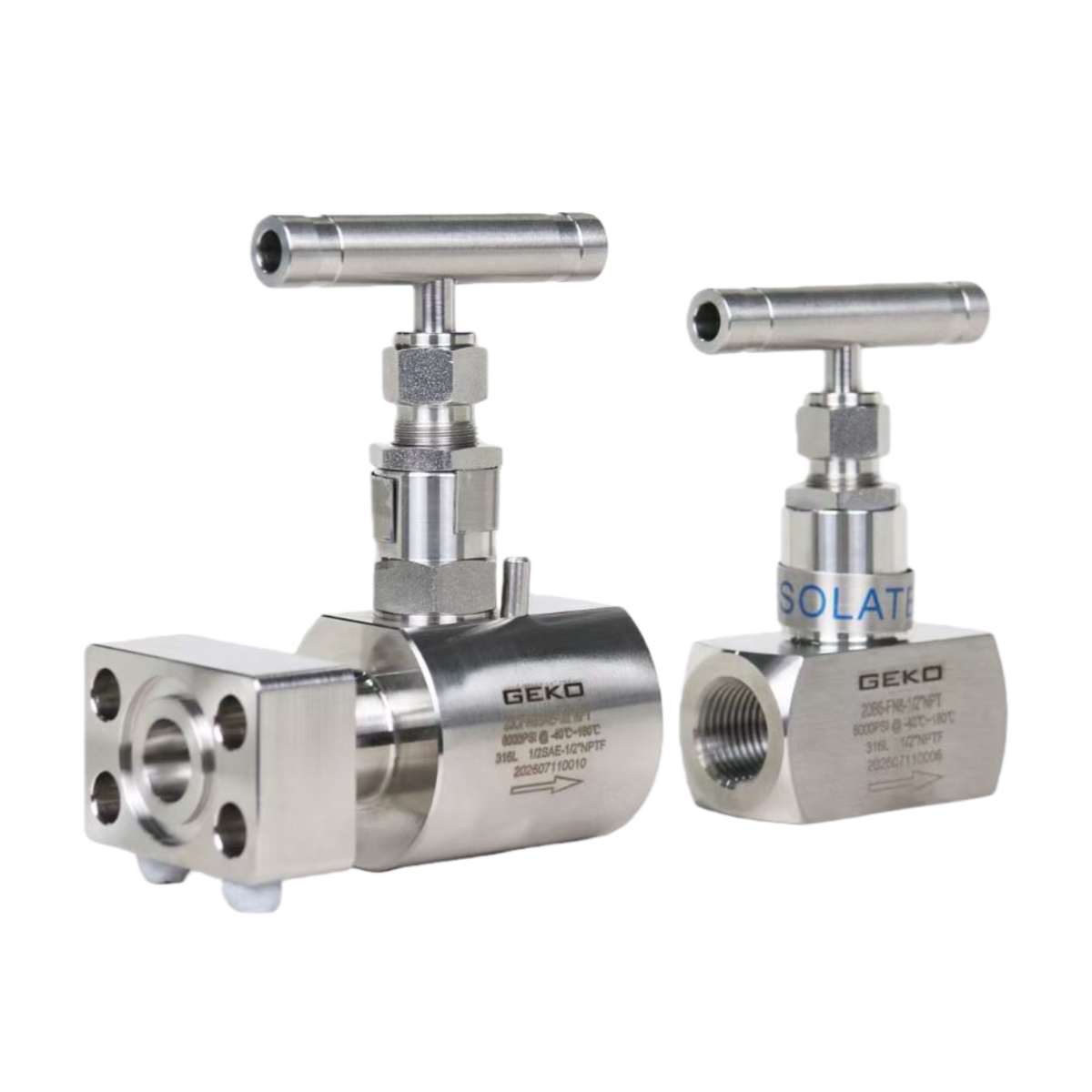

Hydrogen Instrument Needle Valve | High Pressure Hydrogen Needle Valve

General Instrument Valves and Fittings:

Product sizes from 1/16" to 2", with maximum working pressure of 10,000 psi

and temperature ranges from -65°F to 1200°F.

Optional materials include Stainless Steel, Crc，Alloy, Nylon, and PTFE.

Optimized for high-pressure hydrogen conditions, it is widely used in hydrogen

purification units and hydrogen electrolyzer systems. It also serves for

instrument pipelines, sampling and shut-off circuits in the whole hydrogen process.

Unique Design of GEKO Compression Fitting Needle Valve for Instrumentation

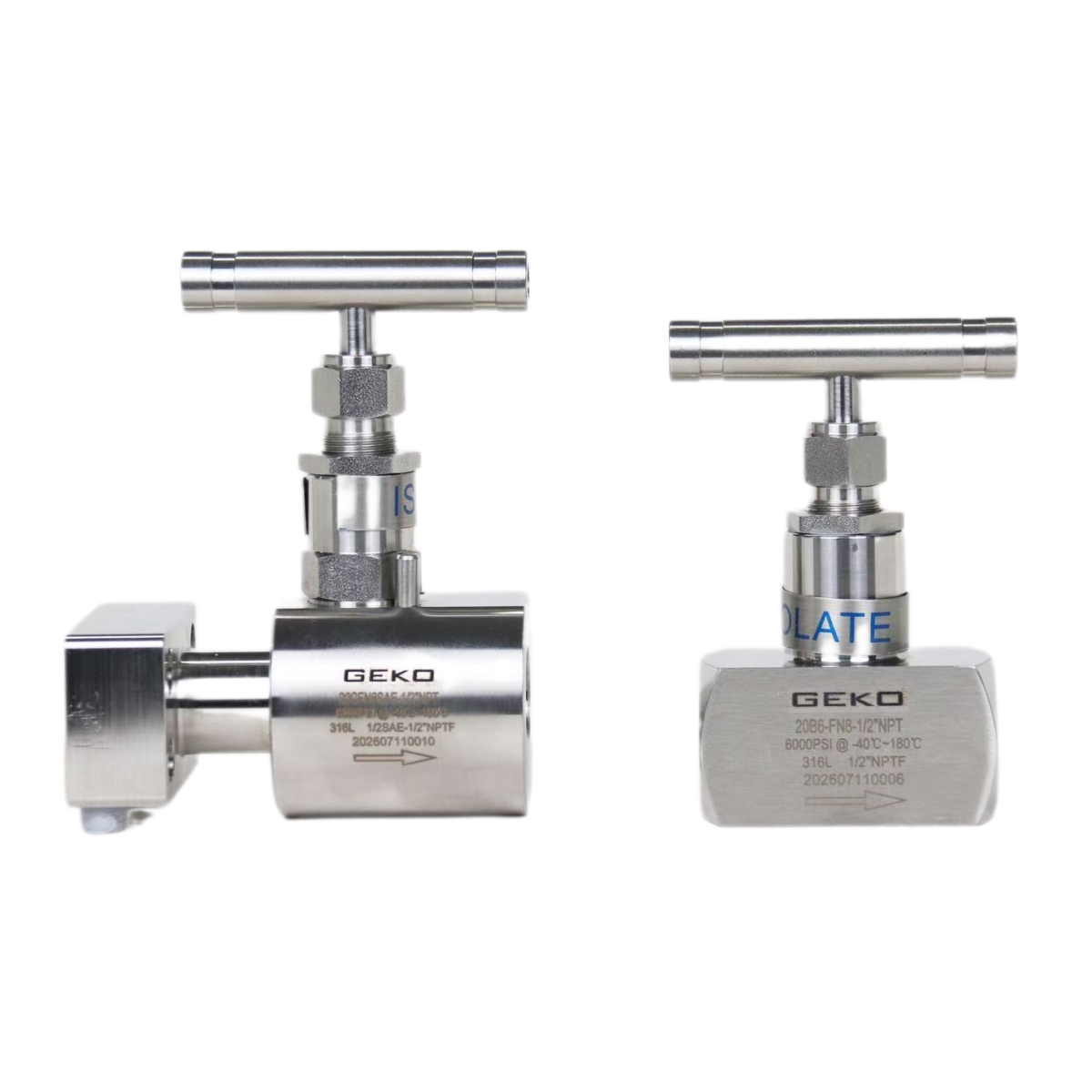

Needle valve for hydrogen purification unit and electrolyzer

High Pressure & Wide Temp：6000PSI rated, -40°C~180°C operating range for harsh hydrogen service

Class V Zero Leakage：Bubble-tight sealing to prevent hydrogen escape and ensure safety

316L Anti-Hydrogen Embrittlement：Forged stainless steel body for long life in high-purity hydrogen applications

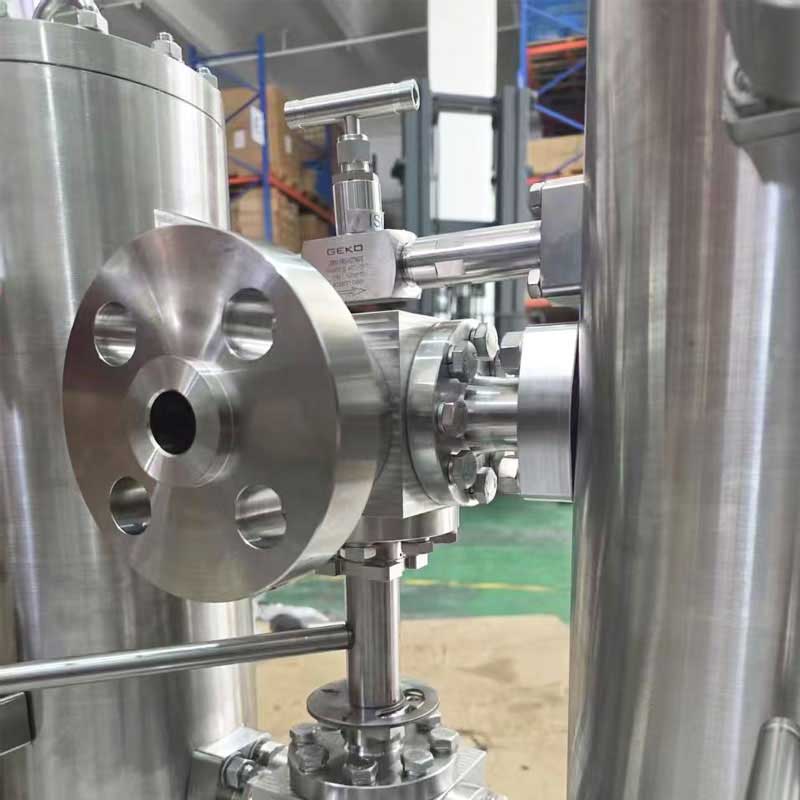

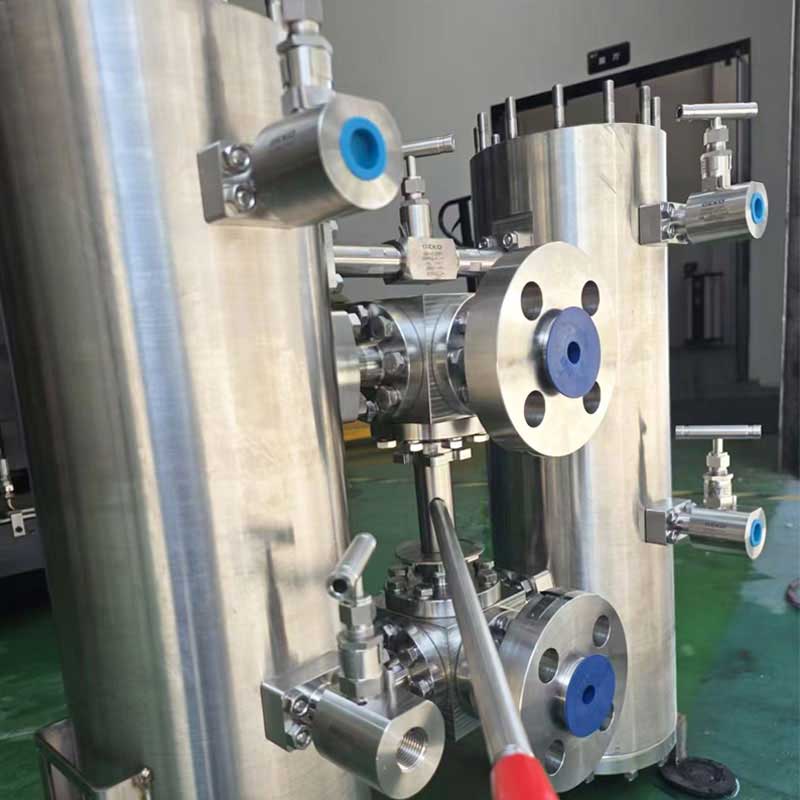

Hydrogen Production & Purification
Used for instrument isolation, sampling, and shut-off in electrolyzer hydrogen systems and hydrogen purification units.

Operating Conditions: High-pressure pure hydrogen service, requires anti-hydrogen embrittlement material, Class V zero leakage, no dead-zone flow path to avoid contamination.
Hydrogen Storage & Refueling Stations
Installed in high-pressure hydrogen pipelines, storage tanks, and instrument control loops at refueling stations.

Operating Conditions: Rated up to 6000PSI, wide temperature range from -40°C to ambient, frequent pressure fluctuations, requires long-term stable sealing and fatigue resistance.
Chemical & Petrochemical Industry
Applied in ammonia synthesis, hydrogenation processes, and hydrogen control pipelines in chemical plants.

Operating Conditions: Corrosive hydrogen-containing media, temperature range -40°C~180°C, requires corrosion-resistant 316L material and reliable sealing under temperature changes.
Power Generation & Energy Industry
Used in hydrogen-cooled generator systems and flue gas denitrification hydrogen supply pipelines.

Operating Conditions: Continuous operation with dry hydrogen, strict zero leakage requirement, compact installation for instrument tubing, low maintenance design.
Laboratory & High-Purity Gas Systems
Installed at sampling points and control loops in high-pressure hydrogen test rigs and gas analysis instruments.

Operating Conditions: Ultra-high purity hydrogen service, low material leaching requirement, frequent operation with low torque, anti-contamination design.
