Liquid Nitrogen Shut-Off Valves: Ultra-Low Temperature Isolation for LN₂ Systems

Liquid nitrogen shut-off valves are specialized cryogenic isolation valves designed to handle ultra-low-temperature liquid nitrogen at -196°C. As core safety equipment in cryogenic storage, transportation, and industrial process piping, these valves provide bubble-tight shut-off, reliable media isolation, and stable on/off control for LN₂ pipelines. Unlike standard industrial valves that fail rapidly under extreme cold, GEKO liquid nitrogen shut-off valves are engineered with low-temperature resistant materials, extended bonnet structures, and anti-freezing designs, perfectly adapting to long-term cyclic operation of liquid nitrogen storage tanks, transfer pipelines, vaporizers, and industrial cryogenic systems.

Liquid nitrogen is widely used in industrial manufacturing, medical treatment, food freezing, aerospace testing, and new energy cryogenic processes. Its ultra-low temperature characteristic causes ordinary valves to suffer seal embrittlement, material cold shrinkage, structural deformation, and internal leakage, which easily lead to medium loss, pipeline frosting, equipment damage, and even safety accidents. Professional liquid nitrogen shut-off valves effectively solve these industry pain points, achieving zero-leakage isolation and safe pipeline switching in extreme cryogenic environments.

Core Structural Design of Liquid Nitrogen Shut-Off Valves

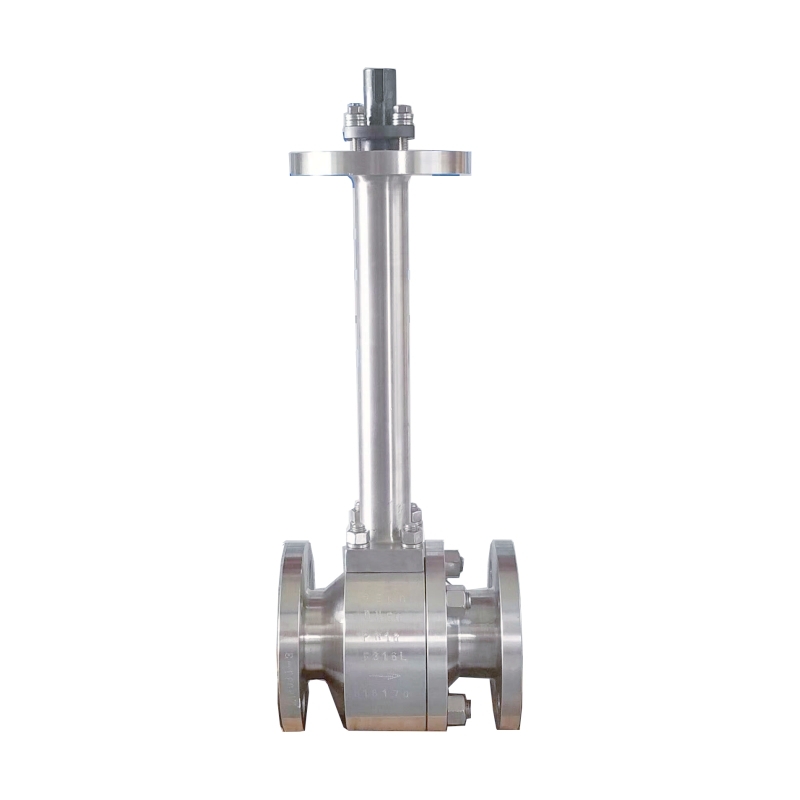

1. Extended Bonnet Anti-Cold Structure

GEKO liquid nitrogen shut-off valves adopt a lengthened bonnet design. The extended stem structure effectively isolates ultra-low-temperature liquid nitrogen from the packing and upper actuator components, preventing low-temperature frost penetration, packing hardening and frost cracking. This structure avoids ice accumulation on the valve stem that may cause jamming and sealing failure, ensuring flexible and stable switching operation under -196°C working conditions.

2. Low-Temperature Resistant Stainless Steel Body

The entire valve body and internal trim are made of high-performance stainless steel materials with excellent low-temperature toughness. It does not produce cold brittleness or structural shrinkage deformation in ultra-low temperature environments, far exceeding the performance of carbon steel and ordinary alloy valves. The integrated forging process improves overall structural rigidity, resisting pressure impact and medium scouring during liquid nitrogen transmission.

3. Professional Cryogenic Sealing System

Matched with imported low-temperature resistant special sealing materials, the valve maintains stable elasticity and tight sealing performance under ultra-low temperature. It avoids the aging, hardening and failure of ordinary PTFE and rubber seals in cryogenic environments, realizing long-term bubble-tight shut-off and effectively preventing liquid nitrogen leakage and gas volatilization loss.

4. Anti-Freezing Smooth Flow Channel

The internal flow channel adopts a streamlined smooth design without dead corners, which reduces fluid resistance and prevents residual liquid nitrogen from freezing and blocking the pipeline. The optimized internal structure ensures rapid and complete medium cut-off during shut-off, supporting frequent start-stop and cyclic switching of LN₂ systems.

Key Product Advantages

• - -196°C Ultra-Low Temperature Resistance: Professional cryogenic configuration, stable operation adapting to liquid nitrogen extreme working conditions
• - Bubble-Tight Zero Leakage: Custom cryogenic sealing system eliminates internal and external leakage, ensuring system safety
• - Anti-Frost & Anti-Jamming: Extended bonnet structure prevents stem frosting and switching failure
• - Excellent Structural Toughness: Stainless steel integral forging, no cold brittleness deformation in ultra-low temperature environment
• - Long Service Life: Resists frequent temperature cycling and pressure fluctuations, reducing maintenance frequency and operating costs

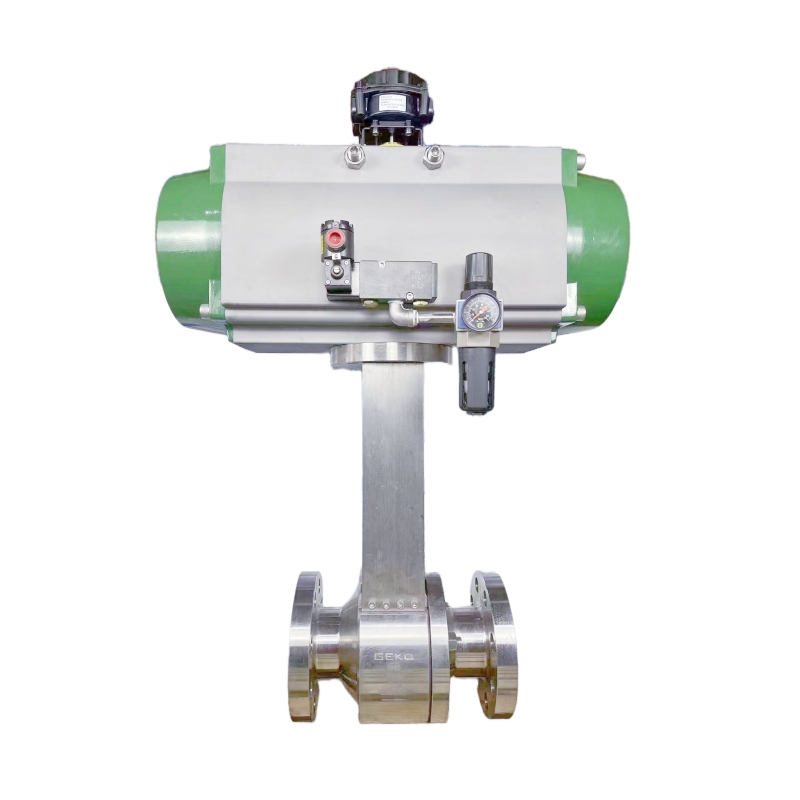

• - Diversified Control Modes: Support manual, pneumatic and electric actuation, compatible with automatic cryogenic control systems

Working Principle

The liquid nitrogen shut-off valve relies on the precise cooperation of the valve core and cryogenic sealing seat to realize pipeline on/off isolation. When the system needs medium circulation, the valve stem drives the valve core to open smoothly, ensuring low-resistance transmission of liquid nitrogen; when shutdown, maintenance or emergency isolation is required, the valve quickly cuts off the flow channel to achieve complete medium shut-off. With the help of extended bonnet anti-freezing structure and low-temperature resistant materials, the valve maintains accurate action and stable sealing in long-term -196°C low-temperature operation, avoiding pipeline failure caused by environmental temperature changes.

Typical Industrial Applications

GEKO liquid nitrogen shut-off valves are widely used in full-scenario liquid nitrogen cryogenic systems, covering industrial, medical, food and new energy fields:

• - Liquid nitrogen storage tank outlet isolation and pipeline shut-off systems
• - Industrial cryogenic processing and low-temperature cooling circulation systems
• - Medical cryotherapy and biological low-temperature storage equipment
• - Food quick-freezing and cold chain low-temperature processing pipelines
• - Aerospace and precision instrument cryogenic testing systems
• - New energy and semiconductor ultra-low temperature process equipment

Common Selection Notes for LN₂ Shut-Off Valves

Ordinary room-temperature shut-off valves are strictly prohibited for liquid nitrogen pipelines. When selecting liquid nitrogen shut-off valves, priority must be given to professional cryogenic models with extended bonnet, low-temperature stainless steel body and special cryogenic seals. It is necessary to match the pressure level and caliber according to the pipeline flow rate and system pressure, and select manual or automatic actuators according to on-site control requirements, so as to avoid valve failure and safety hazards caused by improper selection.

Conclusion

Liquid nitrogen shut-off valves are indispensable safety isolation equipment for all ultra-low-temperature LN₂ piping systems. With professional -196°C cryogenic design, extended anti-frost structure, high-toughness stainless steel body and zero-leakage sealing performance, GEKO liquid nitrogen shut-off valves solve the common problems of frost jamming, seal failure and medium leakage of ordinary valves in cryogenic environments. They provide safe, stable and low-maintenance shut-off protection for various industrial liquid nitrogen storage, transportation and process systems, becoming a reliable choice for global cryogenic engineering projects.
